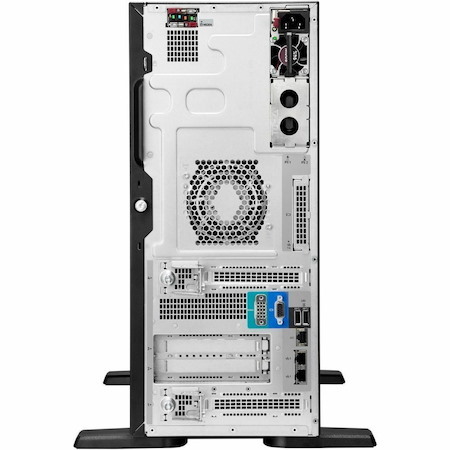

HPE ProLiant ML110 Gen11
Provide enhanced single processor and storage flexibility in a 4.5U 1P tower optimized server with optional rackable chassis, outstanding compute performance, security, reliability, and expandability at an affordable price. Fill a mid-range of workloads for small offices, remote and branch offices of large enterprises, growing SMBs and data centers with the power of 4th and 5th Gen Intel® Xeon® Scalable Processors (up to 32 cores) increased bandwidth with DDR5 and PCIe Gen5. HPE ProLiant ML110 Gen11 server is an excellent choice to accelerate your growing business.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Line
- ProLiant
- Product Series
- ML110 G11
- Product Type
- Server
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Xeon Silver
- Processor Generation
- 5th Gen
- Processor Model
- 4514Y
- Processor Core
- Hexadeca-core (16 Core)
- Processor Speed
- 2 GHz
- Cache
- 30 MB
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C741
- Memory
- Standard Memory
- 32 GB
- Maximum Memory Supported
- 1.50 TB
- Memory Technology
- DDR5 SDRAM
- Error Checking
- ECC
- Total Number of Memory Slots
- 16
- Number of Occupied Memory Slots
- 1
- Signal Processing
- Registered (Buffered)
- Controllers
- Controller Type
- Serial ATA
- Controller Model
- Intel VROC
- I/O Expansions
- Number of Total Expansion Bays
- 10
- Number of External 5.25" Bays
- 1
- Number of Internal 2.5" Bays
- 8
- Number of Media Drive Bays
- 1
- Number of SFF Bays
- 8
- Hot Swappable Bays
- Yes
- Total Number of Expansion Slots
- 2
- PCI Express Details
- 1 PCIe 5.0 x16 Full-height, full-length slot;1 PCIe 5.0 x16 Full-height, half-length slot
- Display & Graphics
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 5
- Number of USB 2.0 Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- VGA
- Yes
- Number of VGA Ports
- 1
- Remote Management
- Yes
- Remote Management Controller
- HPE iLO 6 ASIC
- DisplayPort
- Yes
- Number of DisplayPorts
- 1
- Operating System
- Operating System Supported
- Windows Server
- Red Hat Enterprise Linux
- SuSE Linux Enterprise Server
- Oracle Linux
- Citrix XenServer
- Ubuntu
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 2
- Hot Swappable Power Supply
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Form Factor
- Tower
- Rack Height
- 4.5U
- Height
- 462 mm
- Width
- 195 mm
- Depth
- 587 mm
- Weight (Approximate)
- 30.30 kg
- Miscellaneous
- Security Features
- UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-3 validation (iLO 6 certification in progress)
- Common Criteria certification (iLO 6 certification in progress)
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- Tamper-free updates -- components digitally signed and verified
- Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware
- Ability to rollback firmware
- Secure erase of NAND
- TPM (Trusted Platform Module) 2.0
- Front bezel key-lock feature -- standard, available in both Tower and Rack models
- Padlock slot, standard
- Kensington Lock slot, standard
- Energy Star
- Yes
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
