- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/nz/en/
- Brand Name
- Lenovo
- Product Series
- PM9A3
- Product Type
- Solid State Drive
Introduction

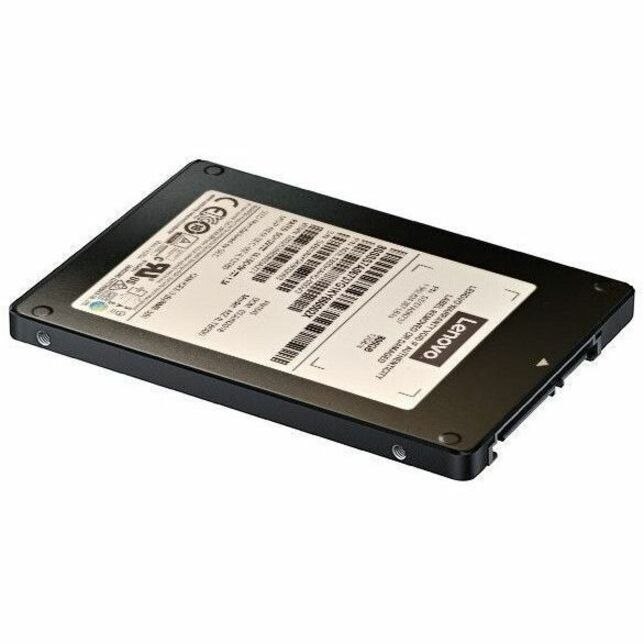

The ThinkSystem PM9A3 Read Intensive NVMe Solid-State Drives (SSDs) are general-purpose yet high-performance family of NVMe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
Did you know?
The PM9A3 SSDs are follow-ons to the PM983 drives. The PM9A3 SSDs offer improved performance, both in terms of random read/write performance (IOPS) and sequential read/write bandwidth (MB/s). Sequential write latency has also been improved.
Lenovo Read Intensive (Entry) SSDs are suitable for read-intensive and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.
- Technical Information
- Storage Capacity
- 3.84 TB
- Drive Performance
- Maximum Read Transfer Rate
- 6900 MB/s
- Maximum Write Transfer Rate
- 4100 MB/s
- Random 4KB Read
- 1000000IOPS
- Random 4KB Write
- 190000IOPS
- Endurance (DWPD)
- 1
- Endurance (TBW)
- 7008 TB
- Endurance Type
- Read Intensive
- Interfaces/Ports
- Drive Interface
- PCI Express NVMe
- Drive Interface Standard
- PCI Express NVMe 4.0 x4
- Physical Characteristics
- Drive Type
- Internal
- Form Factor
- 2.5"
- Hot Swappable
- Yes
- Durability
- Shock Resistant
- Vibration Resistant
- Height
- 7 mm
- Width
- 70 mm
- Depth
- 100 mm
- Length
- 110 mm
- Weight (Approximate)
- 70 g
- Miscellaneous
- Device Supported
- Server
